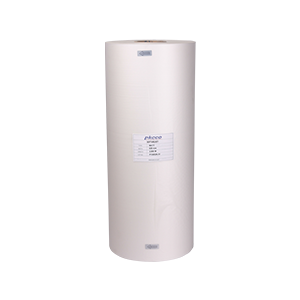

1. THERMAL BOPP LAMINATION FILMS

1.3 Soft-Velvet / Anti-Scuff Type

Product Features

  • PKC's Thermal Soft-Velvet / Anti-Scuff films are specially treated on the surface to protect your valuable printing materials from outside abrasion or scratch safely.
  • PKC's Soft-Velvet film has excellent soft and velvet feeling surface to give high-class quality of lamination to your printings.
  • PKC's Anti-Scuff film has a strong scratch-resistance and it was developed to stand any scratch on the surface of laminated sheets.

  • - Thermal BOPP Lamination Film – Soft-Velvet / Anti-Scuff type
  • - General Application : Book cover& Prints, Photo and Papers
  • - Melting Temperature : 70 – 120℃ or less on the Laminator (Depend on the machine and
      its laminating speed)

PROPERTIES UNIT TYPICAL VALUES TEST METHOD
SOFT-VELVET ANTI-SCUFF
AVERAGE
THICKNESS		 X-BAR ㎛ 32MIC 31MIC PKC-METHOD
R-BAR +/- 5%
HARDNESS BY PEN     F-11 PKC-METHOD
TREATMENT DYNE/CM I.S 46↑/O.S 41↑
TENSILE
STRENGTH		 MD kg/㎟ 11 8.1 ASTM
TD 14.6 13 D-882
ELONGATION
AT BREAK		 MD % 165 177 ASTM
TD 42 45 D-882
HEAT
SHRINKAGE		 MD % 6.6 2.25 ASTM
TD 4.6 1.5 D-1204
COEFFICIENT
OF FRICTION		 OUT/INSIDE US   0.33 ASTM
OPP/OPP UK   0.32 D-1894
HAZE BASE FILM % 80 90 ASTM-1003

  • *** The above data is based on Thermal BOPP lamination film.
  • *** All properties are tested under standard laboratory conditions ; 23±2℃: 50±5% RH,
         unless otherwise stated.
  • *** MD : Machine Direction, TD : Transverse Direction
  • *** The above data is for reference only.
